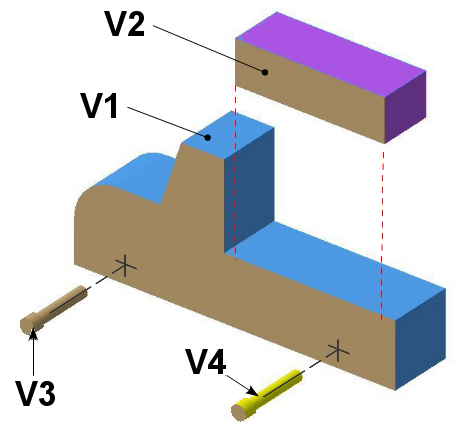

Given the observations and previous reflections, it is possible to envisage the following decomposition :

V1 : base shape                       V2 : rectangular parallelepiped

V3 : revolution shape 1            V4 : revolution shape 2



PartDesign usable tools :



V1 : base shape :  Pad



V2 : rectangular parallelepiped :   Pad



V3 : revolution shape 1 :    Groove



V4 : revolution shape 2 :    Groove
                            or   Linear pattern

2- Imagine a volumic decomposition using the capabilities of the modeler
