Go further with PartDesign WB

Example explained

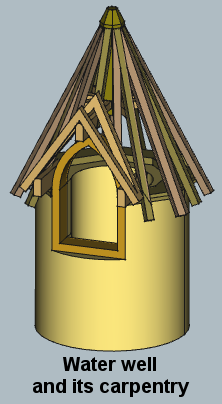

The example proposed concerns the restoration of the roof of a well, octagonal in shape, with a skylight over the opening, the frame of which is in the shape of a warhead.

We will see on this example a certain number of techniques which make it possible to best ensure the construction of a configurable model and its robustness.

The need is multiple :

  - have an overall picture of the construction;

  - edit plans for the manufacture of each component.

Several techniques

The project can be carried out

1- in a single file containing the various components, positioned
    directly relative to each other with copies by Draft tools;
2- in a single file containing the various components, positioned
    directly relative to each other with copies by Asm3 tools;
3- by creating a file by component then assembly by Asm3;
4- by making a mix of different approaches ...

Solution 1 >> see details

The series of body parts is as follows:
                       (hover over the image opposite to see the sequence of steps)

Solution 2

Same series of body parts

Solution 3

Same series of parts body but one part per file
