Use reference planes



As we saw in the examples of the van and in particular that of the chassis, we have adapted our way of working to use only the reference planes.


Remember :

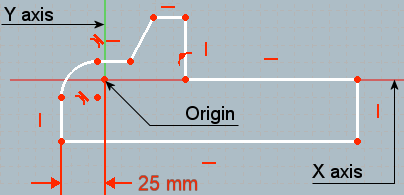

For the construction of the basic shape, we used the XZ plane, but we positioned its sketch relative to the origin so that the plane of the sketch of the bucket can be the XY plane and that of the sketch of the front wheel housing could be the YZ plane.

These are the choices that promote the robustness of the pickup chassis model.
