The workbenches used to create architectural projects are called :


Arch : the historic workbench created to design architectural projects.

Bim : a more specialized workbench for the publication and exchange of data


Warning : it is not a question in these pages of mastering the Arch workbench, but of arriving with tips to build YOUR house in 3D. You will therefore find experiences which generally make it possible to achieve its goal, even if the uses are somewhat "diverted" by Mechanic reflexes.

For information :

these tools

are from Sketcher WB
 and grouped in a custom Arch WB toolbar

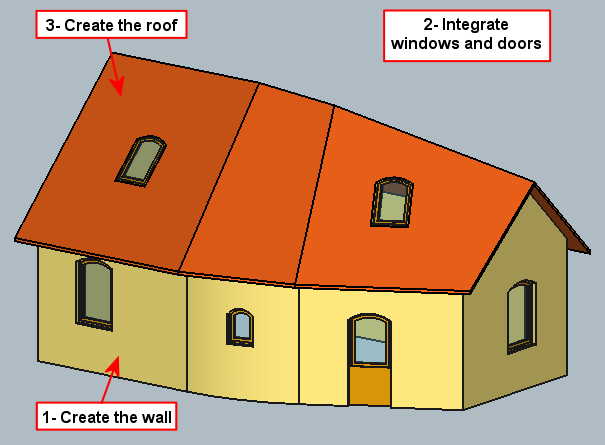

Click on the captions to view the pages (with videos).
