After seeing @ppemawm's fantastic work with FreeCAD version 0.20 and Assembly 4 (https://forum.freecadweb.org/viewtopic.php?f=24&t=67784&sid=8a34d2ec409be9f1555fcf210a7f6ce6 ), I tried to redraw the frame with FreeCAD LinkBranch to try to stay in PartDesign thanks to the new tools integrated by @realthunder.
To view the different examples, click on image markers below :
|
|

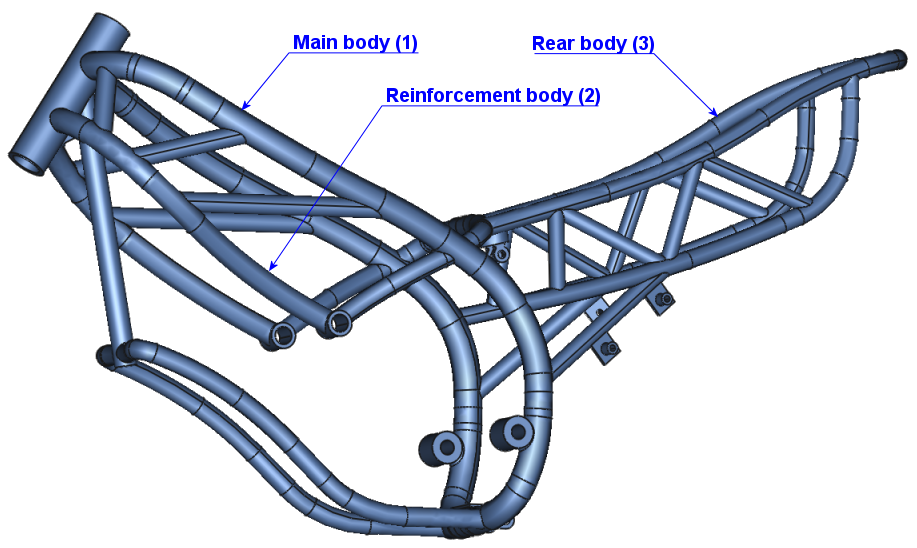

Motorcycle frame |
|
Pour consulter les différents exemples, cliquer sur les zones de l'image ci-dessous :
