Classic construction principle with the PartDesign WB



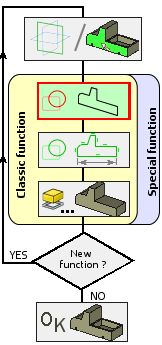

Create sketch entities

Creating a sketch consists in representing the desired coplanar contour(s), respecting their appearance and proportions, using the tools defined below :

1- Create the sketch entities (see all sketch tools

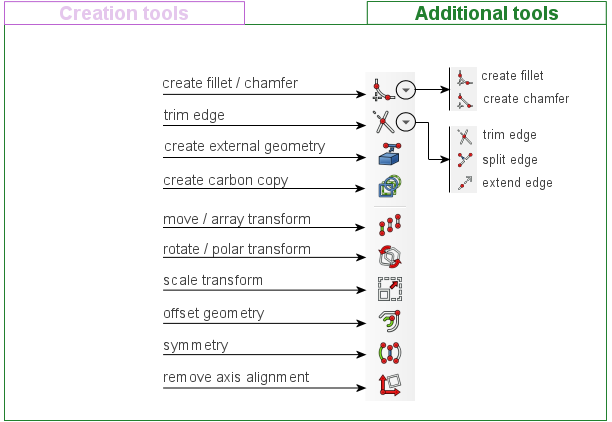

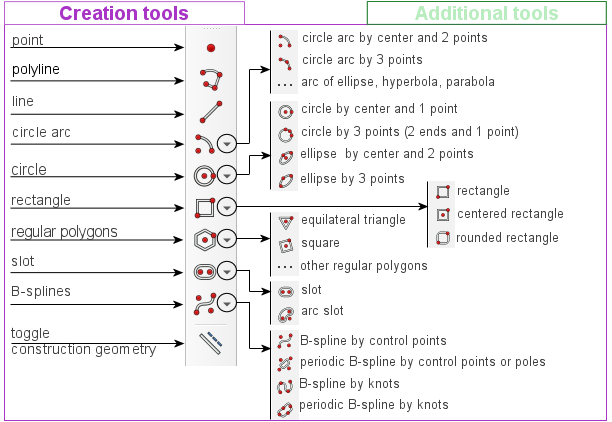

Only the main tools you will use to get started are presented here  (choose tab) :
