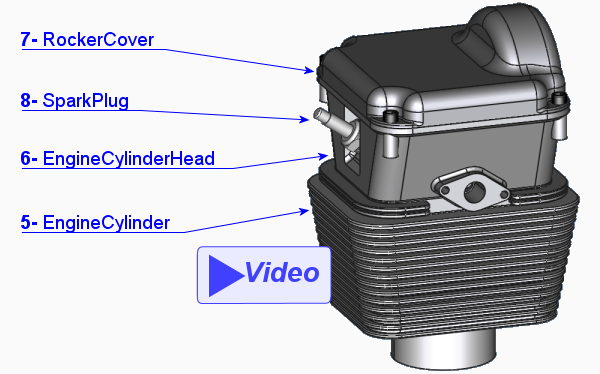

Remarks : The engine casing comprises two identical blocks (5-EngineCylinder + 6-EngineCylinderHead + 7-RockerCover) which it is interesting to group together in a sub-assembly (named 03subAs3_EngineCylinder).
For simplicity, no seal is shown.
From experience, each component will be encapsulated in an assembly container (named As3_...) in order to prepare in advance and above all explicitly name the geometric "elements" which will intervene in the various constraints.
By doing so, it is very easy to add, correct or delete these elements later.
<<< To view the different examples, click in the menu on the left.
|
|
Cylinder pre-assembly |
|
