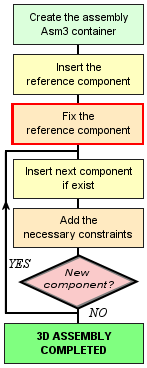

Fix the reference part or subassembly

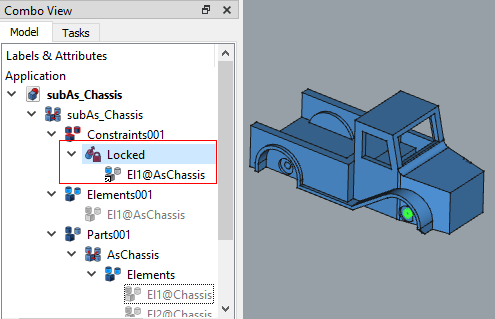

 Select in the tree any constraint element of the object to fix
defined in the preparation phase, then click on the Locked constraint    .



Note :
It is also possible for simple examples to select entities directly on the 3D view. These will automatically appear in the "Elements" group of the assembly container.




A recap video will be available at the end of this cycle.
