Insert the following part or subassembly



 Open the subAs_AxleShaft file of the 2nd kinematic equivalence class.



 Check that the Asm3_Van file is active (it must be in bold characters), otherwise double click on its name in the tree structure.



 Drag and drop the subAs_AxleShaft component to the container of the Asm3_Van global assembly.



 Set the number of instances of axles to 2.

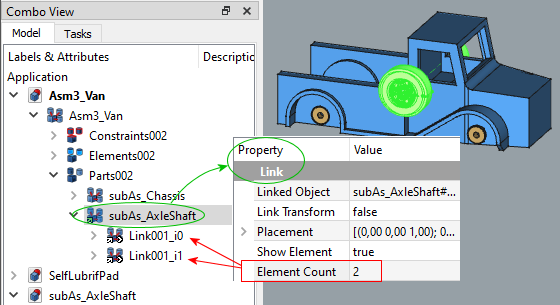

To do this, click in the tree structure on subAs_AxleShaft, then go to the Properties tab under the tree structure, in the Link part, and set Element Count to 2.





A recap video will be available at the end of this cycle.
