Click on the boxes ... |
Questions to ask yourself before you start : What is the reference component ? The base 1-1. What are the complementary components ? Mast 1-2, stator 1-3, outer rings of bearings 1-4 (two instances):
|
|
|
Create a sub-assembly "base" |
|
|
Click on the boxes ... |
Each component must be prepared in an assembly container Although it is not mandatory, it is advisable or even very useful to prepare meticulously its assembly if you want a lasting result and easy to maintain in case of problems. We will assume that each component is saved in its own file.
Three steps are covered here: How to create an assembly container ? How to insert a component into an assembly container ? How to create and organize the elements to be constrained ?
The following video shows you the procedure :
|
|
Click on the boxes ... |

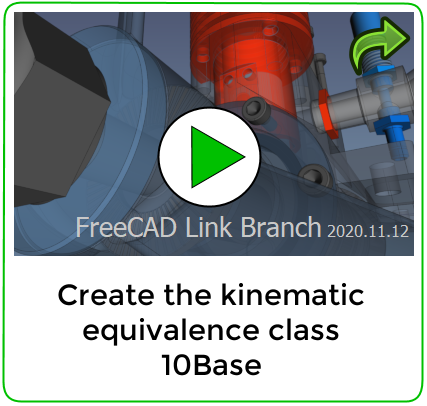

How to create the kinematic equivalence class It is necessary to create a new file and save it before doing anything. Three steps are covered here: How to create an assembly container ? How to insert a component into an assembly container ? How to fix the reference component ?
Reminder : it is necessary to fix the reference component so that the following components are positioned in relation to it and not the other way around.
The following video shows you the procedure :
|
|
Click on the boxes ... |

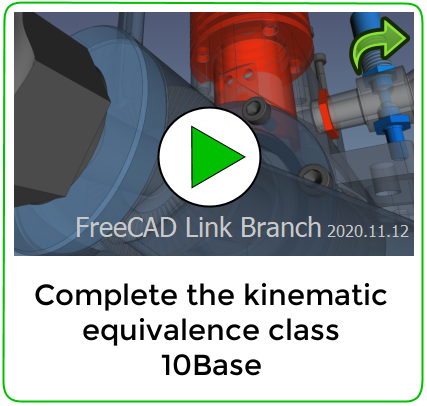

Ho to complete kinematic equivalence class Two steps are covered here: How to insert a new component into an assembly container ? How to add the necessary constraints ? Reminder : it is necessary to fix the reference component so that the following components are positioned in relation to it and not the other way around.
The following video shows you the procedure :
Important note : In a kinematic equivalence class, we can often advantageously replace the |
PlaneCoincident
SameOrientation
AxialAlignment
PointInPlane
Attachment (less resource intensive).
