Click on the boxes ... |
Questions to ask yourself before you start : What is the reference component ? The elastic (in reality only a third to allow an apparent "deformation"), 3 instances. What are the complementary components ? No.
|
|
|

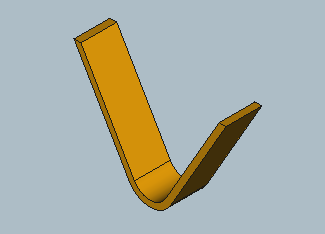

Create a sub-assembly "elastic" |
|
|
|
Each component must be prepared in an assembly container Although it is not mandatory, it is advisable or even very useful to prepare meticulously its assembly if you want a lasting result and easy to maintain in case of problems. We will assume that each component is saved in its own file.
Three steps will need to be addressed here How to create an assembly container ? How to insert a component into an assembly container ? How to create and organize the elements to be constrained ?
You can find the procedures on the video of the 1st example :
|
