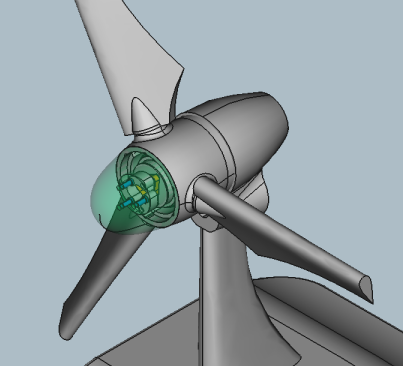

In this step, it is a question of seeing how to create "artisanally" the animation of a mechanism while waiting for the Developers of FreeCAD to offer us some automatisms to get there more simply.
|
|
|
Create the animation of a mechanism |
|
|
Click on the boxes ... |
First part It turns out that I made a small mistake on the inclination of the oblong lights of the ogive toothed wheel! Although unintentional this error gave me the idea to make a video to show how to exchange a component for another similar one and readjust the constraint elements without having to redo all or part of the work!
Replacement file in 7z format (Save link target as ...).
The following video shows you the procedure :
|
|
Click on the boxes ... |
Second part How to create a simple animation? How to add combinations of movements?
Complete archive file for testing animations (Save link target as ...).
The following video shows you the procedure : NB: the files provided in the right column have been optimized and the values of the variables do not necessarily correspond to those of the learning video.
|
